- 符合最新的ATX3.1和PCIe-5.1标准
- 高转换效率 ≧ 90%
- 80 PLUS ® gold 认证
- 105°C日系电容
- 120mm液压轴承（HYB）风扇
- 全模组设计
- 多重保护: OCP, OVP, SCP, OPP, UVP, OTP
-
-
-
获取规格书VITA GM（维塔雪装版）
功率： 1000W White/850W White/750W White
Following the latest ATX3.1 regulation and PCIe Gen 5, the PSUs can hold up to the maximum total power excursion.
The series comes with native PCIe Gen 5 connector and also supports 2 slots of PCIe 6+2Pin for graphic card, besides, 2 slots of CPU connector for higher performance.
Certified by world-class organizations 80 PLUS® with gold certifications for lower power loss, less heat, and quieter operation.
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.

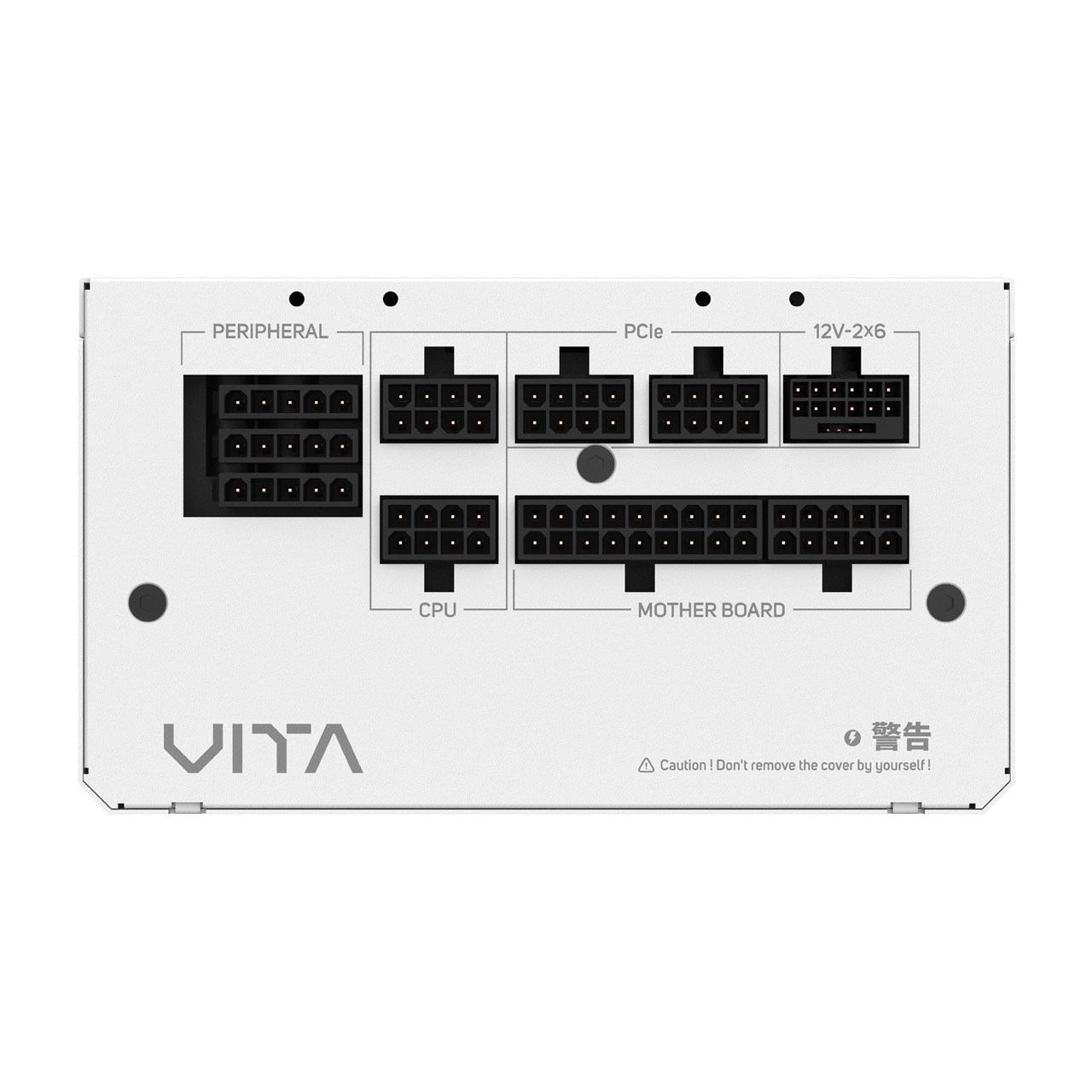

To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.
Maximize reliability and performance by using top-quality Japanese electrolytic capacitors for a longer lifespan.
Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.
|
|
|
|
|
|
|

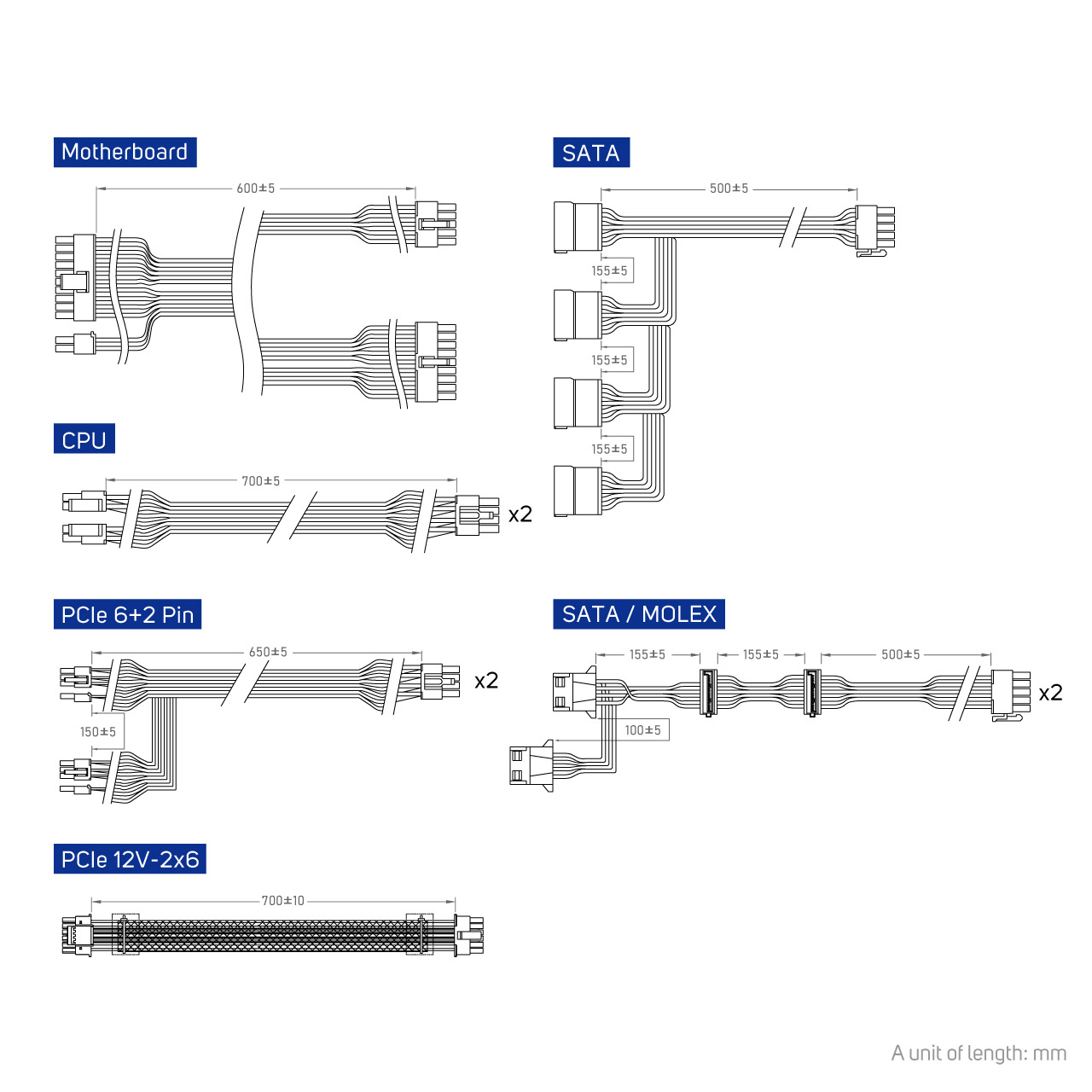

| MB 20+4 PIN | CPU 4+4 PIN | PCIe 12V-2x6 | PCIe 6+2 PIN | SATA | MOLEX | |
| Connectors | 1 | 2 | 1 | 4 | 8 | 4 |
|
AC Input |
100-240Vac~ 12-6A 50-60Hz (Not for China) | ||||
| 200-240Vac~ 6A 50-60Hz (Only for China) | |||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 83.33A | 0.3A | 3A |
| Max Combined Power | 100W | 1000W | 3.6W | 15W | |
| Total Power | 1000W | ||||
| 型号 | VITA-1000GM (White Edition) |
|---|---|
| 额定功率 | 1000W |
| 规格 | ATX12V V3.1 |
| 80 PLUS 认证 | Gold |
| 输入电压 | 100-240V; 200-240V |
| 输入电流 | 12-6A; 6A |
| 输入频率 | 50-60Hz |
| PFC | 主动式 ≧ 0.9 |
| 效率 | 转换效率≥90% |
| 风扇类型 | HYB fan, 120mm |
| 尺寸(L x W x H) | 140×150×86 mm |
| 操作温度 | 40°C |
| 保护 | OCP, OVP, SCP, OPP, UVP, OTP |
